A canvas carrying bag and integrated kickstand offers easy setup anywhere.

BOULDER 100 BRIEFCASE SOLAR CHARGING KIT

Boulder 100 Briefcase Solar Charging Kit comes with a pre-installed 10A Charge Controller, integrated 8mm Connector, Spade to SAE Cable, and SAE to Alligator Clips plus SAE to Ring Terminal options for connecting to 12V batteries. No additional cables or accessories required.

To charge a Goal Zero Yeti Power Station with the Boulder 100 Solar Kit, you simply disconnect the female 8mm Connector Cable on the solar panel from the male 8mm Connector Cable on the Charge Controller and plug it into the 8mm input port on the Yeti.

BOULDER 100 BRIEFCASE HIGHLIGHTS

100 total Watts - two 50-Watt panels (14-21.5V) chained together and connected by a hinge.

Built with strong tempered glass and an aluminum frame with added corner protection.

Included is a protective canvas bag for easy transport and carrying.

PORTS:

Solar Port (blue, 8mm): 14-21.5V, up to 7A (100W max)
Input/Output terminal: M5 terminals
Fuse: 15A replaceable

GENERAL:

Weight: 28.25 lbs (12.8kg)
Dimensions (folded): 26.75 x 21.75 x 3.75 in (70 x 55.2 x 8.9 cm)
Dimensions (unfolded): 26.75 x 43.5 x 1.75 in (70 x 110.4 x 4.4 cm)
Cable Length:
Spade to 8mm: 3Ft
Spade to SAE: 15Ft
SAE to Ring: 23in
SAE to Alligator: 29in
Warranty: 24 Months

BATTERY DETAILS:

Charge Controller: PWM
Rated solar panel amps GZ-10: 10A
Normal input solar cell array voltage: 15-22V
Max solar cell array voltage (output has no load): 25V
Lowest operating voltage at solar or battery side: 8V Minimum
Charging Characteristics:
Start Voltage at 25°C: 3-10V
Charge Voltage at 25°C:
LTO battery: 14.0V
Gel battery: 14.1V
LiFePO4 battery: 14.4V
Charge Voltage at 25°C: AGM battery-14.4V
WET battery: 14.7V
Calcium battery: 14.9V
Equalizing Voltage at 25°C: WET or Calcium battery-15.5V
Float Voltage at 25°C:
Gel, AGM, WET, Calcium batteries-13.6V
LTO and LiFePO4 batteries-13.4V
Battery temperature compensation coefficient: -24mV/°C

SOLAR:

Rated Power: 100 Watts
Open Circuit Voltage (Voc): 21.5V
Maximum Power Point Voltage (Vmpp): 17.2V
Cell Type: Monocrystalline

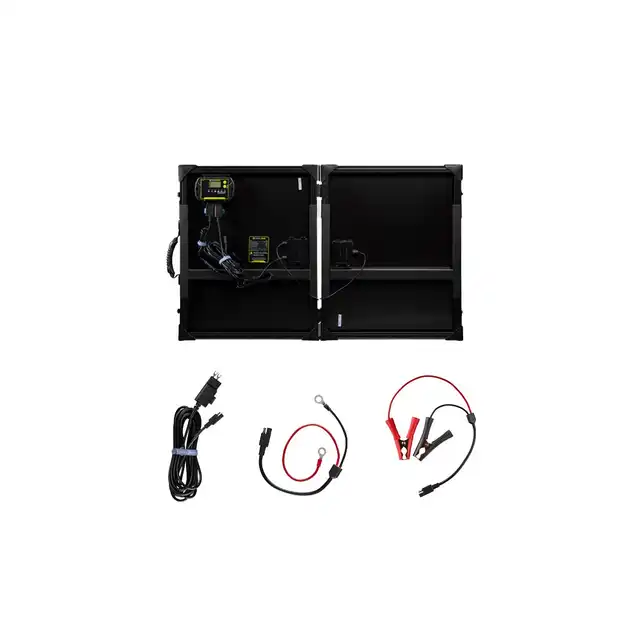

WHAT'S IN THE BOX

Boulder 100 Solar Panel Briefcase with cord and Built-in kickstand
Canvas Carrying Bag
10 Amp Charge Controller
Boulder Charge Controller Mounting Bracket
Spade to 8mm Cable
Spade to SAE Cable
Spade to SAE Cable
SAE to Ring Terminal
SAE to Alligator Clip

BOULDER 100 BRIEFCASE SOLAR CHARGING KIT
