Simply switch the Yeti Link to “Car Mode” to start collecting power while on the move. NOTE: Requires installation by a qualified professional.

YETI LINK VEHICLE INTEGRATION

Off-road? Rough terrain? No problem
The new and improved design of the Yeti Link Vehicle Integration Kit comes with an integrated locking mechanism to provide a more secure and stable connection that won’t jostle loose when the going gets rough. Take your adventure rig off-road and off-grid. We’ll keep you connected.
Everything you need to connect & recharge
The Yeti Link Vehicle Integration Kit comes with everything you’ll need to connect your Yeti power station to your vehicle’s alternator, including a Male EC8 to Ring Terminal and a EC8 12ft Extension Cable with added fuse protection.
Build your portable power system
Pair the Yeti Link Vehicle Integration Kit with Goal Zero Boulder Solar Panels to create a custom portable power system that can recharge your Yeti power station both on the road and off-grid.
Maintain Portability
Built-in handles and magnetized corners make it easier to fold up your panel, pack in the car and go.

HOW IT WORKS

NOTE: Link must be in Vehicle Mode to utilize this feature or it will drain your vehicle’s battery. All Links come standard set in "Tank Mode." Tank Mode allows you to chain a Yeti Tank Expansion Battery to a Yeti Lithium Portable Power Station to increase your energy storage capacity.

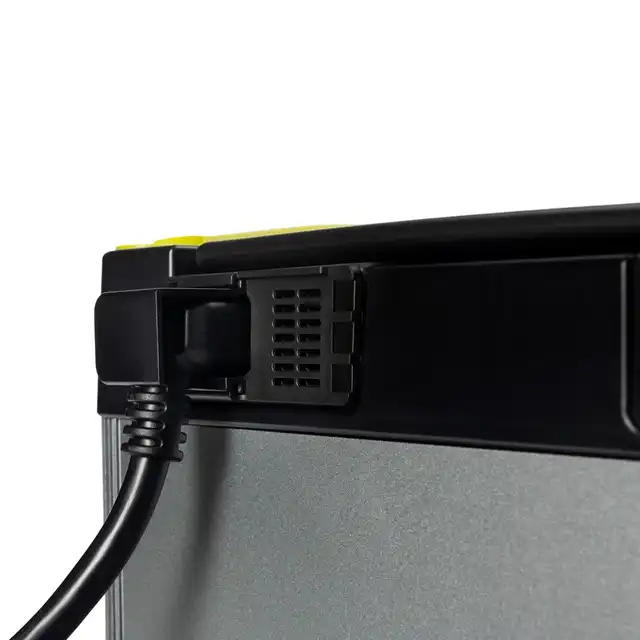

EC8 Male to Ring Cable allows you to connect directly to your vehicle's 12V battery or alternator's +/- terminals. EC8 12' Extension Cable connects the Ring Cable to the back of your Yeti Link. Link locking mechanism secures cables tightly to the Link.
When in “Vehicle Mode,” the Yeti Link pulls power from your vehicle’s alternator while the vehicle is running and stops pulling power when the vehicle is off. While at camp, connect your Yeti with our Boulder or Nomad solar panels to collect and store power through every leg of the journey. When your energy source is portable and sustainable, the possibilities are endless.
While most vehicles manage their battery in nearly identical ways, it has become increasingly common for cars to have slight variations in the way they charge their internal battery system. If you are experiencing slower charging speeds this is due to the integration of smart alternators, which are designed to improve the efficiency of the vehicle and reduce strain on the motor in an idle state. As can be imagined, every manufacturer does this differently. Due to these variances, some of our customers may experience slow charge rates with their Yeti Link when used with a vehicle in a smart alternator configuration. Goal Zero is actively working on a firmware update to address the main concerns regarding the Yeti Link with smart alternator integrations.

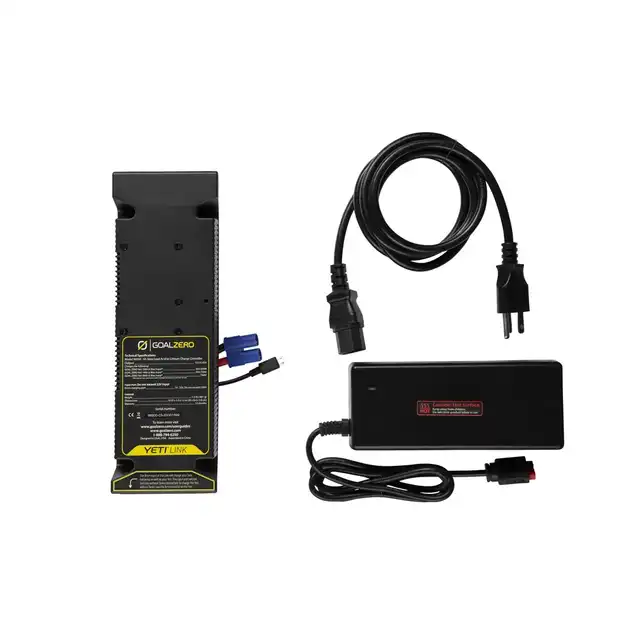

What's In the Box

Yeti Link Expansion Module w/ Link Lock
Yeti X 120W Power Supply

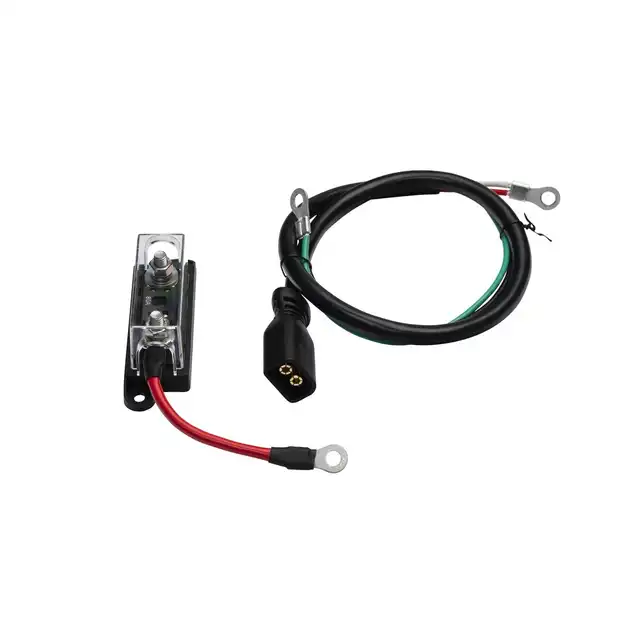

Male EC8 to Ring Terminal w/ 80A fuse
EC8 12 ft Extension Cable w/ EC8 clamp

CHARGE TIMES

Max Input from Yeti Link to

Yeti 1000/1000X: 454-605W
Yeti 1400/1500X: 454-750W
Yeti 3000/3000X: 750W
Yeti 6000X: 750W

GENERAL

SKU: 44201
YETI LINK EXPANSION MODULE
Weight: 1.5 lbs (680 g)
Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
Warranty: 2 Years
YETI X 120W POWER SUPPLY
Gauge: 16AWG
Cable Length: 9 ft 4 in.
Dimensions: 2.5 x 5.9 x 1.4 in. (6.5 x 15 x 3.5 cm)
EC8 12FT EXTENSION CABLE
Cord Length: 12 ft
Gauge: 8
MALE EC8 TO RING TERMINAL
Cord Length: 39 in. (99 cm)
Gauge: 8
Fuse: 80A

PORTS

YETI LINK EXPANSION MODULE
Do not exceed 22V input
8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
External Battery Connector (output): 65A charge controller
External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
YETI X 120W POWER SUPPLY
Input: AC Wall Plug 100-240V - 50/60Hz 3.0A
Output: 8.0mm 16V- 7.5A, 120W

YETI LINK VEHICLE INTEGRATION KIT
