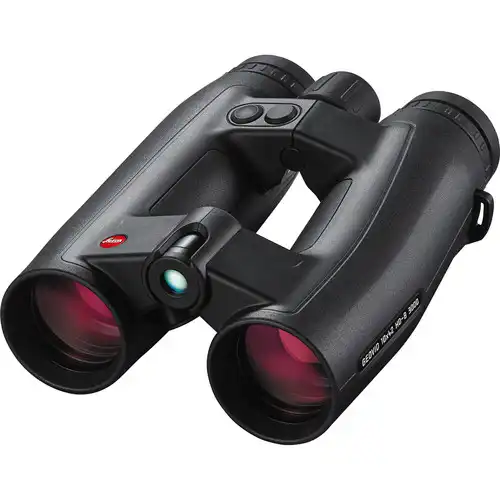

The Leica 10x42 Geovid HD-B 3000 Rangefinder Binocular combines powerful optical performance with a long-distance 3000-yard laser rangefinder and ballistic computer into a highly portable and easy-to-use optic.
Rangefinder | Leica Geovid 10 x 42HD-B 3000 |
Order no. | 40 801 |
Package includes | Contoured neoprene carrying strap, lens caps, eyepiece covers, battery, Cordura case |
Magnification | 10 x |
Front lens diameter | 42mm |
Exit pupil | 4.2 mm |
Twilight factor | 20.5 |
Field of view at 1,000 yds/m | 374ft/114m |
Close focus range | approx. 16.5 ft / 5.0 m |
Diopter compensation | ± 4 dpt |
Distance measurement: | |
Range | 10 yds / 10 m to approx. 3,000 yds / 2,750 m |
Equivalent horizontal range (EHR) | 10 yds to 1,200 yds / 10 m to 1,100 m |
Measuring accuracy | ± 1 yd / m to 547 yds / 500 m ± 2 yds / m to 1,094 yds / 1,000 m ± 0,5 % beyond 1,094 yds / 1,000 m |
Display | LED display with 4 characters and ambient-light-controlled brightness |
Eyecup with twist-and-pull action | yes, detachable, with 4 click-stops |
Focusing | internal focusing with center focusing barrel |
Prism system | Perger Porro-System |
Coating | HDC® multicoating, AquaDura® lens coating |
Waterproof | waterproof to 16.5 ft / 5 m |
Body | magnesium, nitrogen- lled |
Dimensions (W x H x D) | 4.9 x 7.0 x 2.8 in / 125 x 178 x 70 mm |
Weight | approx. 33.3 oz / 980 g incl. battery |
Yard/Meter switch Laser | yes |
Measuring mode | scan mode, single measurement |
Ballistic functions | Equivalent horizontal range (EHR), point of aim correction, number of clicks required on elevation turret |
Bullet trajectories | 12 xed pre-installed curves Integration of custom data using microSD card |
Power supply Battery lifetime | 1 x 3 V/ CR2 lithium button cell |
Battery lifetime | approx. 2,000 measurements at 68° F / 20°C |
Accessories | tripod adapter (42 220) floating carrying strap (42 163) |
