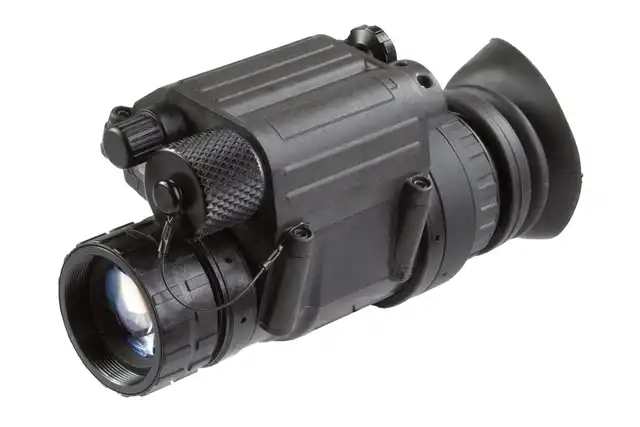

The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 350 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

Warning: California's Proposition 65

FEATURES

Compact, rugged design
Waterproof
Head or helmet-mountable for hands-free usage
Manual gain control
Ergonomic, simple, easy-to-operate controls
Built-in Infrared illuminator and flood lens
3-Year warranty

PACKAGE INCLUDES

Packing Box
System Soft Carrying Case
Helmet/ Head Mount Adapter
Head Mount Assembly
Neck Lanyard
Operators Manual
Batteries
Demist Shields
Sacrificial Window
Lens Tissue

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "White Phosphor Level 1"
Resolution	51-64 lp/mm
Field of view cleanness by zone	Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1..
Magnification	1x (3x and 5x optional)
Lens System	27 mm; F/1.2
FOV	40°
Focus Range	0.25 m to infinity
Diopter Adjustment	-6 to +2 dpt
Led Indicators	Low battery; IR On; Excessive light conditions
Infrared Illuminator	Yes
Manual Gain Control	No
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Battery Type	One AA Alkaline
Battery Life (Operating)	Up to 40 hours at 20°C
Operating Temperature Range	-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range	-51° C to +85° C (-60° F to 185° F)
Weight	0.35 kg (12.4 oz)
Overall Dimensions	114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)

AGM PVS-14 NW1
