All models come equipped with twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.

New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The ReachIRs built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.

Warning: California's Proposition 65

FEATURES

384×288, 12-micron sensor
Sub-20mK thermal sensitivity
Fast 50 Hz imaging
Built-in 1,000-meter laser rangefinder
New optimized image processing algorithms
1x, 2x, 4x, 8x digital zoom
1024×768 resolution, 0.39-inch OLED display
Vide/audio recording and image capture
64 GB built-in memory
Wi-Fi hotspot
Standby mode
Replaceable and rechargeable 18650 Lithium battery
Up to 4.5 hours continuous running
Auto screen-off function
Robust magnesium alloy housing
Waterproof
5-Year Warranty

SPECIFICATIONS

External Power	5 VDC/2 A, USB Type-C interface. Supports external power supply.
Dimensions	181 × 53 × 85 mm (7.11 × 2.07 × 3.36 in)
Weight (w/o batteries)	386 g (0.85 Ib)
Palettes	Black Hot, White Hot, Red Hot, Fusion
Working Temperature	-30°C to 55°C (-22°F to 131°F)
Distance Measurement	Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode	Jungle, Recognition
Picture In Picture Mode (PIP)	Yes
Hotspot	Yes
Video Recording	Yes
Audio Recording	Yes
Magnification	2.5x – 20x
Response Waveband	8 μm to 14 μm
FFC (Flat Field Correction)	Auto, Manual, External Correction
Highest Temperature Spot Tracking	Yes
Standby Mode	Yes
Refresh rate	50 Hz
Resolution	384 × 288
Detection Range (6' object)	1,200 m/yd
Snapshot	Yes
Lens system	25 mm; F1.0
NETD	Less than 20 mK (25°C, F#=1.0)
Field of view (H × X)	10.5° × 7.9°
Digital zoom	1x, 2x, 4x, 8x
Diopter adjustment range	-5 to +3 dpt
Monitor	1024x768, 0.39 inch, OLED, 50 FPS
Storage	64 GB EMMC
Battery Type	One 18650 rechargeable battery (removable)
Battery Operating Time	Up to 4.5 hours continuous running (@25°C, WiFi and LRF off)
Battery Capacity Display	Yes
Protection Level	IP67 (Waterproof)

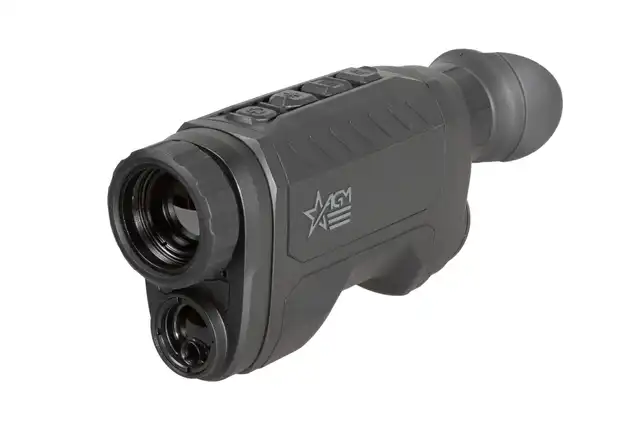

AGM ReachIR LRF 25-384
