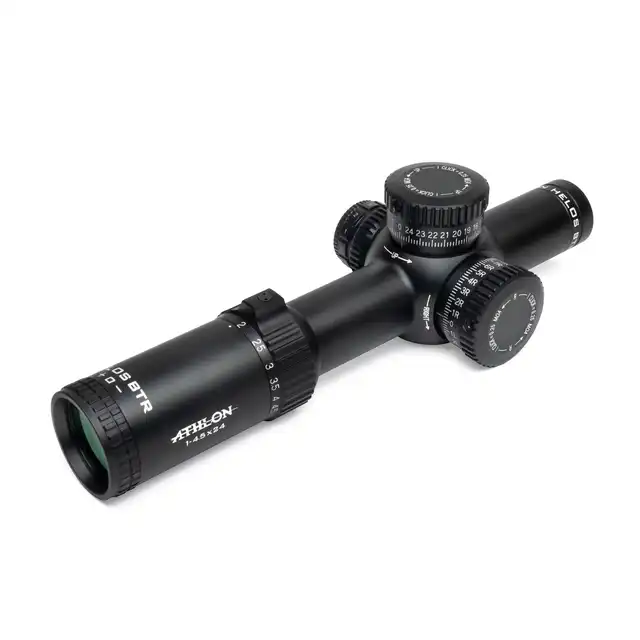

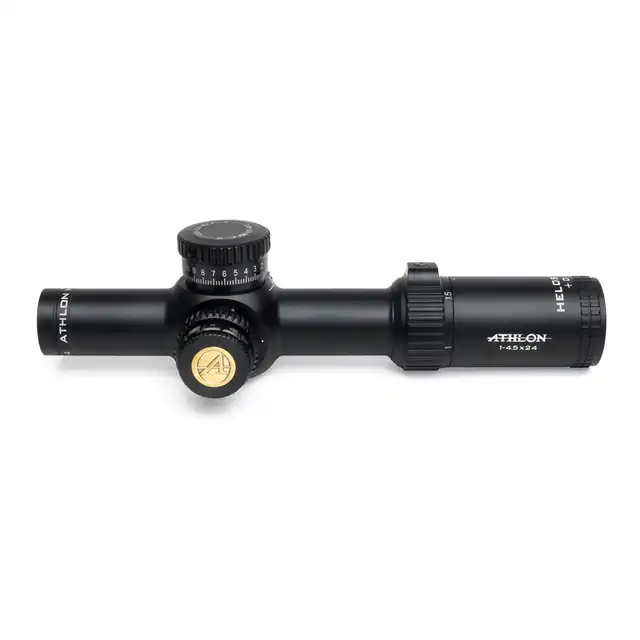

The Helos BTR 1-4.5×24 rifle scope family is specially designed for service rifle matches and AR platforms with short and mid range applications in mind.
About Helos BTR 1-4.5×24 ATSR3 SFP IR MOA

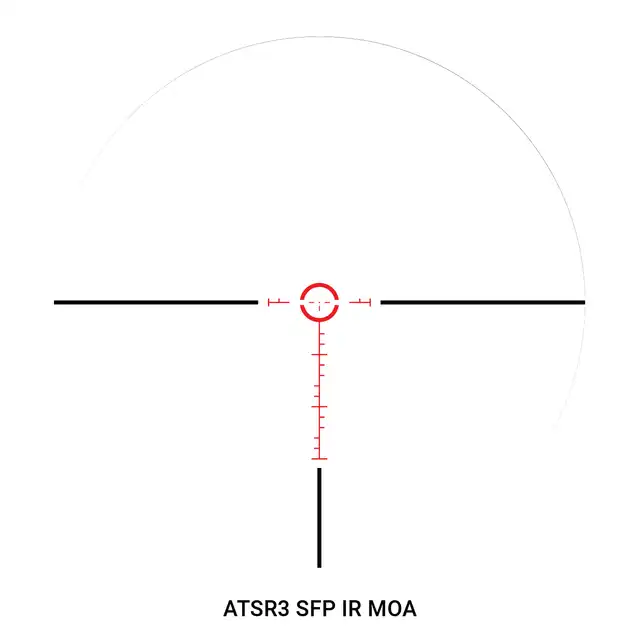

The scope is loaded with robust turrets that have 23 MOA travel-per-rotation, true zero stop and revolution locking feature, and fully multi-coated lenses. The revolution locking feature limits the Up Adjustment of your elevation turret within one revolution from your zero position, while still providing total 23 MOA adjustment that is more than enough for your target at 600 yard. This feature eliminates any second-guessing you might have on which turn you are at on your elevation turret. The ATSR3 reticle is specially designed for the service rifle matches with the center circle at right size that fits most of your targets and the center dot for precision and horizontal line for wind hold over.
This Helos BTR Model has ATSR3 second focal plane illuminated MOA reticle in it. Please click the link or download the reticle instruction manual in Specification for more details…
Included
Battery, Instruction Manual, Lens Cloth, and Allen Wrench(s)
Specs and Features
| Magnification | 1-4.5 |
| Objective Lens Diameter | 24 mm |
| Reticle |
ATSR3 SFP IR MIL, Glass Etched
|
| Surface Finish | Matte |
| Lens Coating |
Wide Band Fully Multicoated
|
| Extra Coating |
Xtra Protective Coating
|
| Tube Material | 6061 Aluminium |
| Tube Diameter | 30 mm |
| Exit Pupil | 12.2-5.2 mm |
| Eye Relief | 3.2 inches |
| Field of View @100 yards | 100-22 feet |
| Click Value | 0.25 MOA |
| Adjustment range per rotation | 23 MOA |
| Effective Elevation Adjustment | 23 MOA |
| Total Windage Adjustment | 80 MOA |
| Turret Style | Exposed |
| Parallax Adjustment |
Side Focus – 10 yards to infinity
|
| Purging Material | Argon |
| Length | 9.5 inches |
| Weight | 22.9 ounces |
| First Focal Plane Reticle |
First focal plane design allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
|
| Locking Turrets |
Locking feature on both elevation and windage turrets allows you to simply pull up the turrets to dial and push down the turrets to lock them in place. This feature gives you a peaceful mind whether you are moving from one station to next during your competition or putting them away for your next hunting trip.
|
| Illuminated Reticle |
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment.
|
| Etched Glass Reticle |
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
|
| Advanced Fully Multicoated |
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
|
| 6061 T6 Aluminum |
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it.
|
| Heat Treated One Piece Tube Construction |
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
|
| Waterproof |
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
|
| Fog proof |
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
|
| Shockproof |
Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
|
| Argon Purged |
Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .
|
