Instructions on how to wire batteries in parallel

For example, connect 4 of the DL 12V 100Ah batteries in parallel to create a 12V 400Ah battery system. This kit includes high-amp rated wiring optimal for solar energy systems and battery banks, house battery systems for RVs and boats, and off-the-grid applications.

Also included are fuse protection blocks that isolate each battery in the system to provide redundant safety. Each Dakota pack comes with individual internal Battery Management System (BMS) circuit board protection. In addition to that safety layer, when wiring packs to work in unison in a parallel array, we recommend adding an additional layer of safety by adding an isolation fuse to each pack. This further isolates any problem that operating your equipment at maximum ratings, or a harsh environment might throw at the batteries, and adds safety for very little additional effort. Safety fuse protection for up to 4 batteries in parallel is included in this wiring kit.

This is a heavy duty kit optimized for solar battery banks in RVs, boats, and off-the-grid homes and cabins. For trolling motors we recommend wiring batteries in series or buying a single battery rated at the voltage needed.

Suitable for:

RVs, Vans, Campers, Trailers, and Mobile Homes
Solar Battery Banks
Boats and Marine Applications
House Battery Banks
Off-the-grid Homes & Cabins

Battery connections

Ring terminals connect to all 12-48V Dakota Lithium batteries 23Ah of capacity and larger

Wire Guage

6 gauge wire

Compatibility

Connects up to four batteries (12-48V) in parallel. Compatible with any Dakota Lithium battery 23Ah of capacity or larger

Fuse Protection Included

Each Dakota pack comes with individual internal Battery Management System (BMS) circuit board protection. In addition to that safety layer, when wiring packs to work in unison in a parallel array, we recommend adding an additional layer of safety by adding an isolation fuse to each pack. This further isolates any problem that operating your equipment at maximum ratings, or a harsh environment might throw at the batteries, and adds safety for very little additional effort. This kit includes 4 fuse blocks and fuses, each rated for up to 150 Amps and 58 Volts, plus a spare fuse. Uses a standard fuse type, so other fuses can be interchanged if needed.

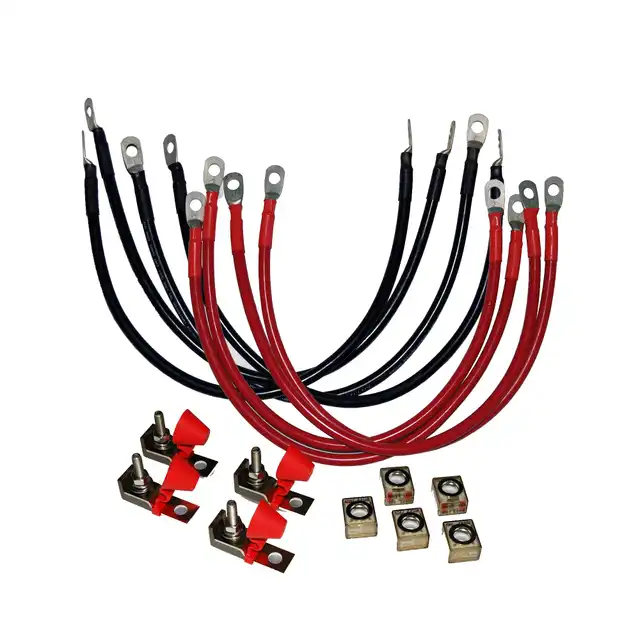

Parallel Wiring Kit with Safety Fuse Protection
