The PRO XL501 Chipper Shredder does it all. Its shredding action is produced by 24 serrated, free-swinging hammers in combination with our unique Shark-Teeth™ Shearing Fins. This superior shedding technology reduces lighter materials 20:1...pulverizing leaves, sticks and other yard and garden waste (up to 1.5" thick) into a fine mulch that you can compost or till into your soil. And its side chipper chute will demolish branches up to 5" in diameter. The PRO XL501 lets you get all of your yard cleanup done with one versatile machine. The PRO XL501 comes standard with a pin hitch for off-road use with your ATV, UTV or lawn tractor. And, if you add our optional road-towing kit, you’ll get everything you need to take the DR on public roads at speeds of up to 45 miles per hour.

Product Summary:

5" Chipping Capacity
1.5" Shredding Capacity
24 Free-Swinging Shredder Hammers
Briggs & Stratton OHV Engine; 13.5 HP (420cc)
Electric-Starting with recoil backup
8" x 14" Chipper Hopper Opening
19" x 17" Shredder Hopper Opening
Hardened Steel PRO-SPEC™ Chipper Knife
Wheels: 16" x 4.6"
Weight: 407 lbs.
Pin hitch standard

Warranty

Engine: 2 years residential; 1 year commercial
Machine: 2 years residential; 90 days commercial

FEATURES

Serrated Shredding Hammers

Our unique, serrated shredding hammers use their jagged edges to pulverize materials fed into the shredder hopper and reduce it by 20:1. The result is a fine “pre-composted” mulch that can enrich your garden soil. Hammers are reversible and can also be rehung from the opposite hole to provide fresh surfaces for chewing up materials up to 1.5” in diameter.

Shark-Teeth™ Shearing Fins

Patent pending. These fins (10) create channels in the bottom of the shredding chamber for the serrated hammers to swing through. They provide additional sharp surfaces to help tear apart yard and garden waste, including the fibrous green branches (up to 1.5” in diameter) that will jam up underpowered machines.

Self-Feeding Action

A large vertically oriented hopper, a precisely-angled heavy-duty chipping knife, and a powerful air channel work together to pull branches into the chipping hopper and blast wood chips out the discharge. Most materials will self-feed, so once you drop a branch in your free to get the next one. No force feeding required!

Oversized Hoppers

The shredder hopper opening is 19" x 17", big enough to accept multiple stalks up to 1.5" thick along with side branches and leaves. The chipper opening (8" x 14") accepts branches up to 5" in diameter.

TOW IT WHEREVER THE WORK IS!

The PRO XL501 comes standard with a pin hitch for use with ATV, UTV or lawn tractor. With the addition of our optional road towing kit, you can take the PRO XL501 on public roads at speeds up to 45mph.

Briggs and Stratton OHV Engine

The PRO XL501 Chipper Shredders uses a durable 13.5 HP (420cc) Overhead Valve engine with electric-start. It features a debris management system that protects the engine from whatever you kick up while you're chipping and shredding.

Pro-Spec™ Chipper Knife

Made of high-carbon/high-chromium forged alloy tool steel, our knives hold an edge longer than those on "bargain" chippers. Still, as with any cutting tool, keeping a sharp edge is important for maintaining peak performance. We recommend keeping an extra on hand so you can minimize downtime.

ROAD TOW KIT

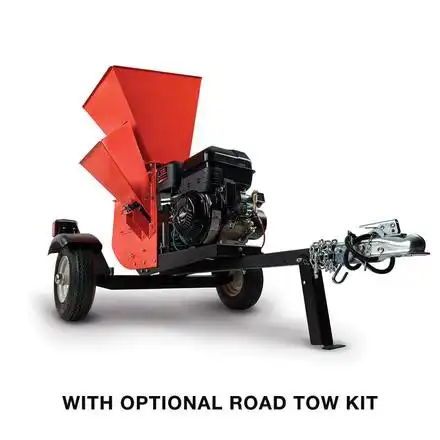

Add the Road-Towing Package to your PRO XL501 Chipper Shredder for safe and easy transport on the road up to 45 miles per hour. Road-Towing Package includes: Lights, Fenders, Wiring, Ball Hitch, and Safety Chains.

SPECS

CHIPPING

Adjustable Knife Wear Plate: Yes
Chipper Knife Material: D2 Heat Treated Tool Steel
Chipper Knife Size: 6.25"
Chipper Knife Speed: 97 MPH
Chipping Capacity: 5"
Hopper Opening Size: 8" x 14"
Safety Blowback Shield: Yes

DIMENSIONS

Flywheel: 16.25" in Diameter
Height: 53"
Length: 79"
Shipping Weight: 560 lbs
Weight: 407 lbs
Width: 47"
Shipping Dimensions: 78" L x 49" W x 50" H

ENGINE

Air Filter: Dual Element
Cooling Methods: Air Cooled
Displacement: 420 cc
Engine Type: OHV
Ft Lbs Torque: 21
Horsepower: 13.5
Lubrication: Splash
Make: Briggs & Stratton
Number Of Cylinders: 1
Oil Capacity: 37 oz
Oil Filter: No
Oil Type: SAE 30W HD
RPM Speeds: 3600 (+/- 100)
Starting Type: Electric
Choke/Primer: Choke

FUEL SYSTEM

Fuel Capacity: 1.7 Gallons
Fuel Shutoff Valve: Yes
Inline Fuel Filter: no

WHEELS/TIRES

Number of Tires: 2
Tire Size: 16" x 4.6"
Tread: On/Off Road

MATERIAL

Construction: Steel
Frame: Steel, 9 Ga
Hopper Material: Steel
Blade Material: D2 Tool Steel

SHREDDING

Hammer Features: Serrated & Reversible
Hammer Size Type: 3.5" x 1.5" x 0.2"
Number Of Hammers: 24
Shredder Chamber Hits / Minute: 48,336
Standard Screen: 1" Hole
