Our XD Series Field and Brush Mowers are built for the demands of commercial use: frequent use, long runtimes, daily transport, and ease of maintenance.

The XD26 cuts 26” wide and features a Honda GXV390 engine that is a proven workhorse. Independent hydrostatic wheel drives ensure ease of handling without fatigue. Built in hand guards protect the operator while mowing brush.

Transport is simplified with integrated tie-down hooks that make trailering fast and easy.

Product Summary:

10.2 HP Honda GXV OHV Engine, Recoil Start
Hydrostatic Drive: 2 independent wheel drives for fingertip control
Variable speed drive, forward and reverse with zero-turn radius ability
26" cutting deck
Pivoting deck follows contours of ground
Oil pump for superior performance on hills
Handguards protect operator’s hands from brush and briars
Integrated tie-downs for ease of transport
Tool-free drain hose for simple oil changes
See Features and Specs Tabs for more product details

Warranty

Engine: 3 years residential; 3 years commercial
Machine: 2 years residential; 2 years commercial

FEATURES

Commercial Duty Engine

The Honda GXV390 with Overhead Valve delivers reliable, easy starting and fuel-efficient performance. With 10.2 HP (389cc) it has plenty of power to churn through thick grass and brush. Pressure and Splash lubrication ensures smooth operation on slopes up to 20º. 49 State (not available in CA).

Hydrostatic Drive

Two independent hydrostatic wheel drives provide a zero-degree turning radius and virtually effortless maneuverability.

Intuitive Operation

Hydrostatic controls give you fingertip control. Squeeze the hand lever for forward movement, push the thumb lever for reverse. Action is pressure sensitive, so you set the speed.

26” Wide Pivoting Deck

The 26" deck is wide enough for effective clearing but is still very maneuverable. Unlike rigid, fixed decks found on some mowers, the DR deck pivots from side to side, allowing it to follow the contours of rough terrain. This feature minimizes scalping and improves traction.

Custom-Made Blade Spindle

Made of 1.375" thick cast iron with oversized double sealed bearings, the blade spindle is integrated into the deck housing and reinforced for vibration-free performance. Designed to provide years of maintenance-free use (and abuse!).

Integrated Tie-Downs

4 welded steel hooks (2 on each side of mower) provide secure anchor points for transportation.

Tool-Free Drain Hose

Makes removing oil fast, neat, and easy. No tools needed, just uncap and drain.

Hand Guards

Operator’s hands are protected from brush, briars, and other obstacles.

Assembled in the USA

Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.

SPECS

CUTTING

Cutting Height: 4"
Cutting Width: 26"
Number of Blades: 1

DIMENSIONS

Handlebar Height: 38.7"
Height: 42"
Length: 74"
Shipping Weight: 465 lbs
Weight: 313 lbs
Width: 30"

ENGINE

Air Filter: Dual Element
Cooling Methods: Air Cooled
Displacement: 389cc
Engine Type: OHV
Horsepower: 10.2 HP
Lubrication: Pressure & Splash
Make: Honda
Model: GXV390
Number Of Cylinders: 1
Oil Capacity: 38.4oz
Oil Type: SAE 30W HD
RPM Speeds: 3500 rpm
Starting Type: Manual-Start, Recoil

FUEL SYSTEM

Fuel Capacity: .55 gal

GENERAL

Accepts Attachments: No
CARB Certified: No
Assembly: None

WHEELS/TIRES

Number of Tires: 2
Tire Size: 16" x 5.5"
Tread: Directional Tread

MATERIAL

Deck: 12 Gauge
Frame: Steel
Frame Thickness: 11 Gauge

California residents: WARNING

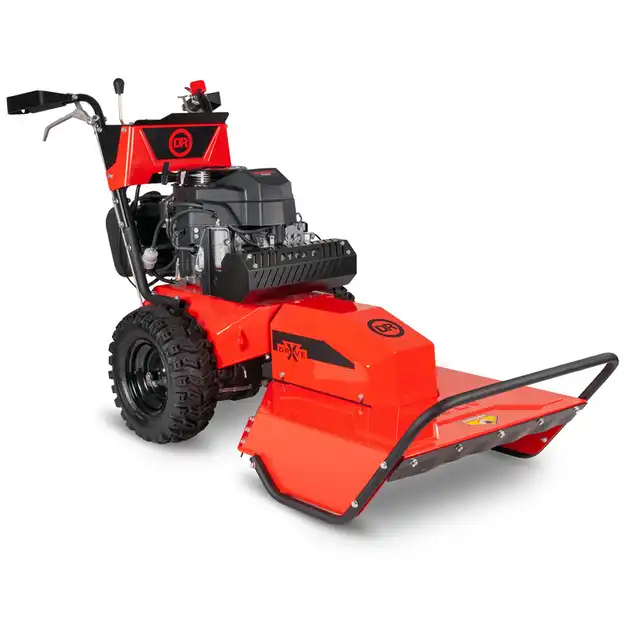

DR Field and Brush Mower XD26
