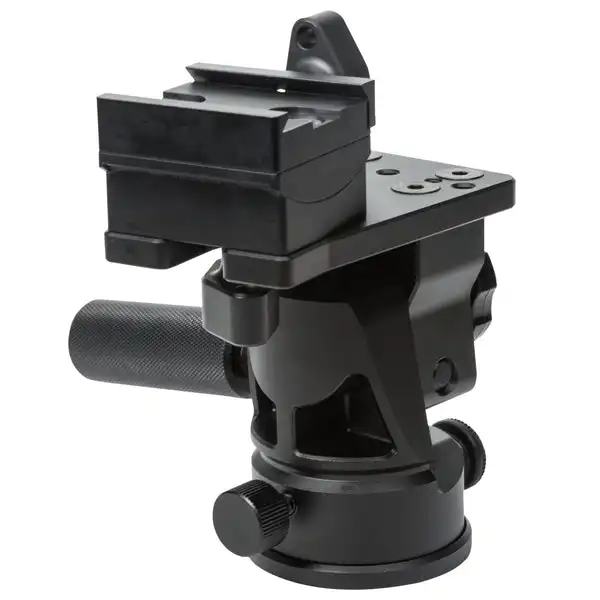

The Reaper Rail system mounts Arca Swiss rails to medium and heavy-duty tripods with 3/8-16 threaded studs. The Reaper Rail allows for both vertical and horizontal travel allowing you to swivel with ease making follow-up shots easier. This patent-pending innovation eliminates the need for slight adjustments to the tripod if it is not level. The 11 degrees of cant (both directions) gives the user the opportunity to quickly adjust while setting up for those hasty opportunities in the field and gives a more compact, lighter-weight alternative to our original grip without sacrificing stability.

If you currently own our reaper grip, you can convert it to a Reaper Rail with just the purchase of the Rail Plate and Cant Level (mounting screws included). Tripods with the smaller 1/4-20 threaded stud require an included adapter to allow it to work on those models as well.

US Pat. 772372S1

Included in Package

Camera thread adapter

Product Downloads

Features

Easily mounts onto an Arca Swiss rail
Provides a sturdy base for long-range precision shooting
Heavy-duty construction is designed to tackle any harsh environment
Smooth 360° pan and tilt range of 109° (21° up and 87° down)
Offset grip design allows for magazine changes with the rifle mounted and provides easy manipulation

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

WARNING: This product can expose you to chemicals including Cumene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Weight	1.99 / 904 lbs/g
Material	Aluminum
Dimensions	6 x 5.5 x 6.5 / 152 x 139 x 165 in/mm
Rail Tilt	=+ - 11 degrees
Pan Rotation Angle	360 degrees
Vertical Rotation Angle	87 Down, 21 Up degrees
Mounting	3/8" - 16 Threaded Hole

Reaper Rail System - Arca Swiss
