The Merger LRF with its 2.5-20x variable magnification boasts a powerful 640x480 17µm thermal imaging sensor with NETD <25mK, ensuring detail recognition out to almost 2,000 yards, even under the harshest weather conditions. A built-in precision laser rangefinder, able to detect distance measurements over 1,000 yards, allows you to measure distances in single measurements and continuous scanning modes with tremendous accuracy for a quick and error-free target distance assessment.

The high-sensitivity 640x480 sensor with <25mK NETD captures minimal temperature differences when observing in conditions of low temperature contrast, as well as during rain or fog. An advanced fast aperture F50/1.0 germanium lens, along with the sophisticated sensor, 8 color palette options and AMOLED display, provide exceptional detection and identification capabilities.

Two independent batteries offer up to 10 hours of continuous operation on a single charge. The Merger also comes standard with built-in video and photo recording capabilities and 16 GB of free space. The Merger’s improved Wi-Fi connectivity with 2.4/5 GHZ waveband support yields seamless connection to the Stream Vision 2 app, available for both Android and iOS devices.

A high-quality reinforced magnesium alloy housing delivers an IPX7 waterproof rating with an operating temperature ranging from -13 to 122F.

Features

Classic design & compact size
Comfortable viewing experience for prolonged observation
Precise laser rangefinder with 1000 m measuring distance
High-definition thermal imaging sensor with 640x480 pixel @ <25 mK NETD
Enhanced image processing algorithms with three image amplification levels
Fast aperture F50/1.0 germanium lens
Long detection range up to 1800 m
Two independent batteries – up to 10 hours of continuous operation on a single charge
2.5x-20x variable magnification
High-quality reinforced magnesium alloy housing
Built-in photo and video recorder plus 16 GB of free cloud space
Distant operation and firmware update from iOS and Android devices via the Stream Vision 2 App
Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
Two high-contrast AMOLED displays
A selection of 8 colour palettes
IPX7 waterproof rated
Wide range of operating temperatures (-25 to +50C)

Specifications

Sensor resolution, pixel	640x480
Pixel pitch, µm	17
Display type	AMOLED
Objective lens	F50/1.0
Magnification	2.5x-20x
Detection range, m	1800
FOV, °	12.4x9.3
Dimensions, mm	196x143x76
Weight, g	0.8

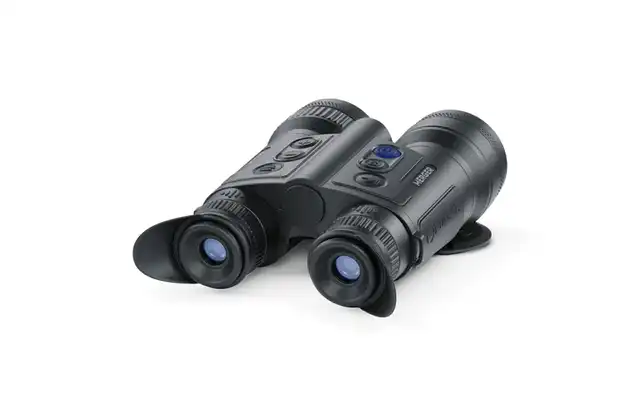

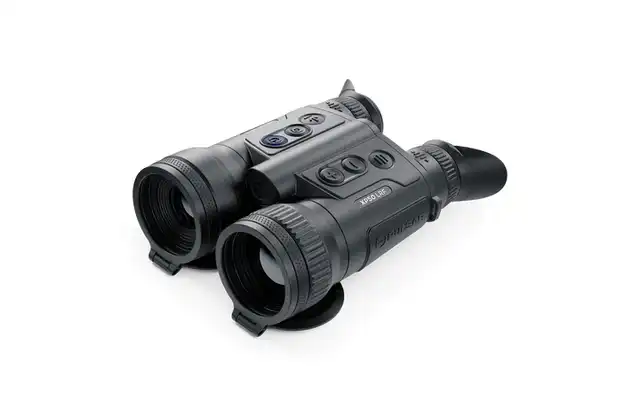

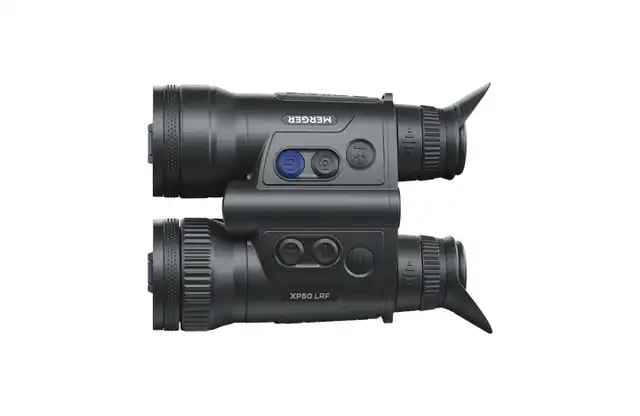

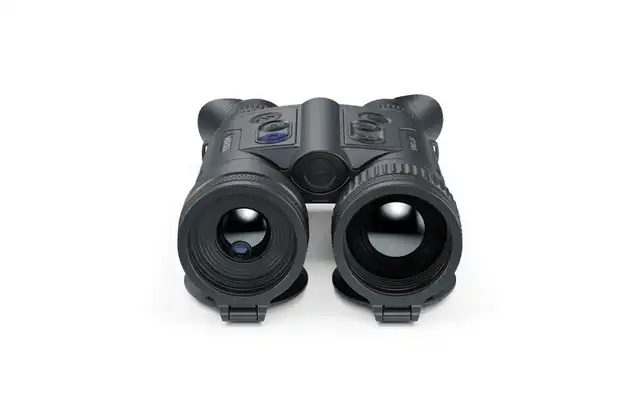

Merger LRF XP50 Thermal Binocular
