This tactical, HeliCoil Technology-powered crossbow turns you into a lightning fast 450 FPS shadow – thanks to its integrated Silent Cocking System.

XK7 CAMO

Stay one more step ahead of your quarry with apex Ravin accuracy, incredible power, and — new for 2023 — the killer tech of Kings’ XK7 camo. Inspired by the natural colors and terrains of North American environments, XK7 unites seven abstract shapes and textures to provide you with ultimate concealment, no matter the distance.

RAVIN ADJUSTABLE TURRET SCOPE

In the heat of the takedown, this illuminated scope makes dialing in your yardage easier than ever. Simply turn the turret to match the distance of your target.

1-8 x 24 zoom
10 illumination levels in red & green
Fog, shock, recoil, and waterproof
Fully coated lenses
Includes yardage tapes and blank tapes

INCLUDES

Silent Cocking System
Built-In Cocking Mechanism
Anti-Dry Fire/Auto Safety
Built-in Sling Mounts
1X Removable Draw Handle
1X Quiver/Mounting Bracket
3X Ravin .001 Premium Arrows & Field Points (400 Grain Total)
Adjustable Turret Scope
Ravin Scope Level

Speed (400 gr.)	450 fps
Kinetic Energy	180 ft-lbs
Weight	6.75 lbs
Length	29"
Width (Cocked)	6" AXLE - AXLE
Width (Uncocked)	10.5" AXLE - AXLE
Power Stroke	12.5"
Powered by	Helicoil Technology
Draw Force	12 lbs
Out-of-Box	FULLY ASSEMBLED + PRE-TUNED

01 VERSA-DRAW™ COCKING SYSTEM
One of the revolutionary design advantages provided by HeliCoil technology is the Versa-Draw Cocking System. Working in conjunction with the Trac-Trigger Firing System this ultra-compact fully integrated cocking mechanism is built into the sleek stock design. Featuring a minimal 12 pounds of cocking force the Versa-Draw Cocking System is ambidextrous and has the ability to cock and un-cock your Ravin crossbow. This unique Helicoil advantage provides an easy to use, fully integrated cocking mechanism delivering unmatched accuracy with every shot.

02 SILENT COCKING
The Fully Integrated Silent Cocking System works in. conjunction with the Trac Trigger Firing System and includes a built-in one way bearing removing any noise, resulting in a completely silent draw. The cocking mechanism allows you to stop the draw cycle at any time during the cocking process. They'll never hear you coming.

03 TRAC-TRIGGER™ FIRING SYSTEM
A patented built-in trigger mechanism that slides forward on the rail and clasps directly to the precise center of the string every time the bow is drawn, allowing for straight-line nock travel. This unique Helicoil advantage creates a perfectly balanced draw for unmatched down range accuracy with every shot.

04 FRICTIONLESS™ FLIGHT SYSTEM
This patented technology allows the arrow and string to free float above the rail, eliminating friction for consistent accuracy and increased string and cable life. This unique HeliCoil advantage delivers astounding target accuracy with every shot.

05 HELICOIL® TECHNOLOGY
The engine behind Ravin crossbows. This revolutionary technology has several industry changing advantages that all work together to create the most accurate crossbow ever designed. HeliCoil technology coils cables away from both the top and bottom of the cams in helical grooves keeping the cams perfectly balanced. This allows the cams to rotate an incredible 340 degrees, while both cams remain perfectly level when drawing and shooting the crossbow. This revolutionary design creates an incredibly compact crossbow packed full of innovative features that produce rifle-like downrange accuracy.

06 ADJUSTABLE TURRET SCOPE
Simply dial in your yardage with a twist of the turret on this red & green illuminated scope.

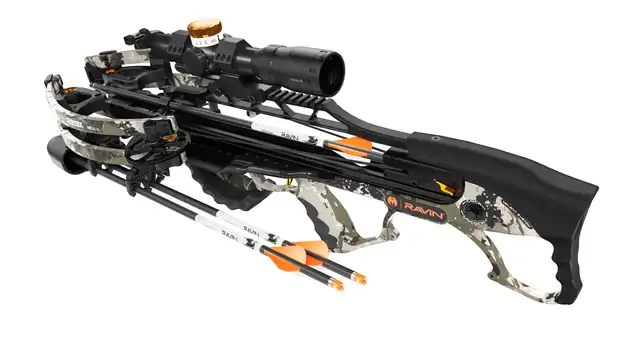

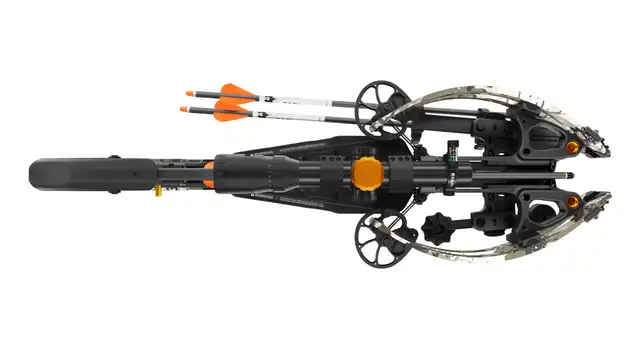

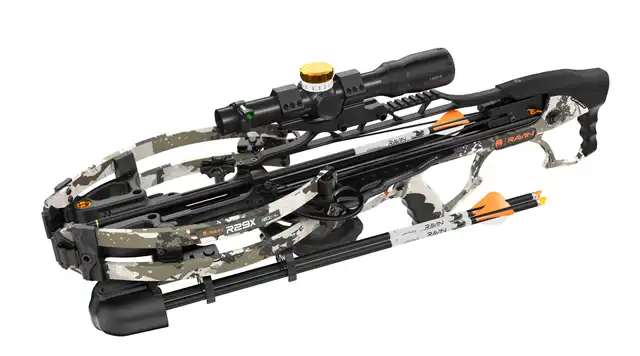

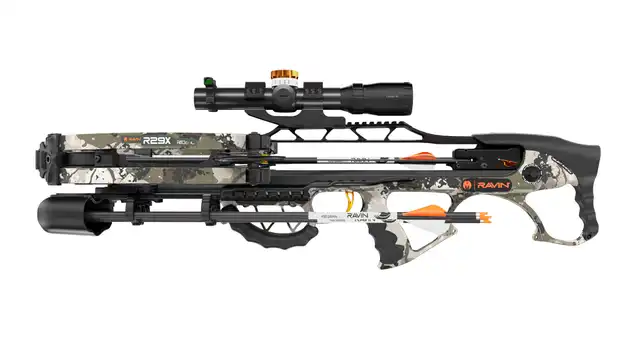

RAVIN R29X SNIPER XK7
