Featuring the new proprietary HexCoil Cam System, the R500E is able to produce staggering speeds of 500 feet per second with a 400 grain arrow, and has an axle-to-axle width of 3.6 inches when cocked and 7.6 inches when uncocked. Along with unmatched speed and dimensions, the R500E has the new Ravin Electric Drive System, that allows users to simply press a button to cock and decock this crossbow, with the option to manually cock the crossbow with the included R500 Draw Handle.The Ravin Electric Drive consists of a 12-volt battery and motor unit that simply attach and detach to the stock. Both the battery and the motor unit can be easily detached for storage or to recharge on the charging dock. The R500E also utilizes our new VersaDrive Cocking system, which consists of a dual screw drive that moves the Trac Trigger Firing System (TTFS) back and forth. The internal clutch within the VersaDrive System eliminates over-cocking and allows cocking or decocking to be stopped at any time during the process.

Speed: 500 FPS
Weight: 9.9 LBS
Length: 28”
Width Axle to Axle Cocked: 3.6”
Width Axle to Axle Uncocked: 7.6”
Power-Stroke: 15”
Kinetic Energy: 222 FT LBS
Draw Effort: 17 LBS
Draw Weight: 300#
HexCoil Cam System
VersaDrive Cocking System
Electric Cocking Motor, Charger and Removable Battery
Fully Assembled/Pre-Tuned
6 – Ravin .003 R500 Arrows & Field Points (400 Grain Total)
1 – Removable Draw Handle
1 – Quiver/Mounting Bracket
100 Yard Illuminated 550 FPS Scope
Anti-Dry Fire/Auto Safety
Built-in Sling Mounts

*Use only R500 Series Arrows in the R500 Series Crossbows*

Warning: California Prop. 65 - This product can expose you to chemicals including mineral oil which is known to the State of California to cause cancer and methanol which is known to the State of California to cause birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov.

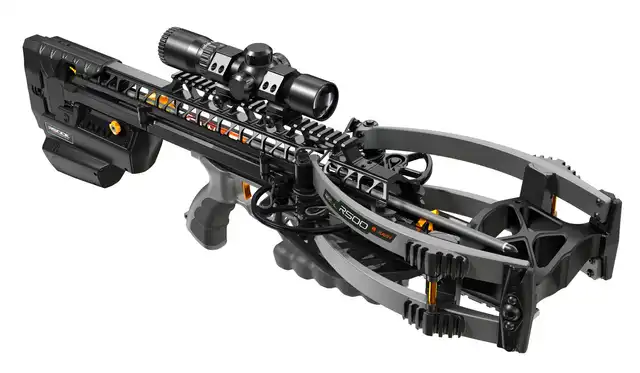

RAVIN R500E CROSSBOW
