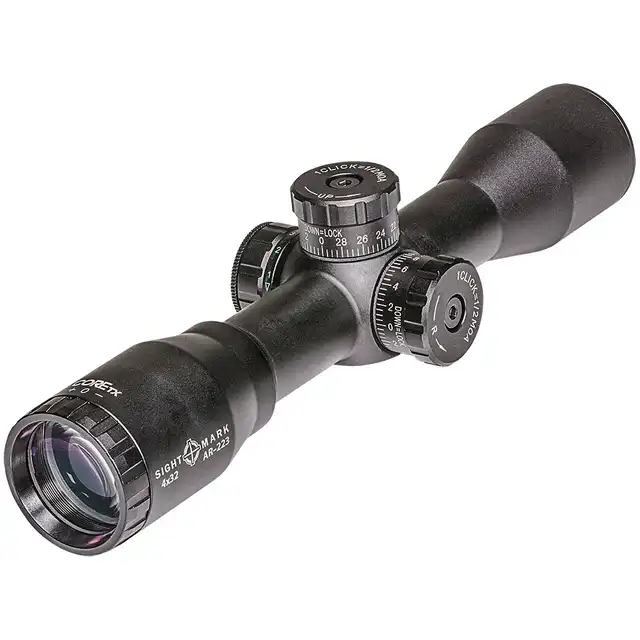

Perfect for tactical operations, competition, target shooting or hunting, the Core TX 4x32 Riflescope features exposed, pop-up, locking turrets to prevent loss of zero.

Product Manual

Product Specifications

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

WARNING: This product can expose you to chemicals including Cumene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Fixed 4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 4x32 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

Included in Package:

Flip up lens covers
30mm scope rings
CR2032 battery

Battery life, hours	100-70
Battery Type	CR2032
Battery Voltage, V	3V
Body Material	Aluminum
Diameter, Exit Pupil	7mm
Diameter, Eyepiece	1.57/40
Diameter, Objective Lens	32
Diameter, Tube	1 inch
Diopter Adjustment	-1
Elevation Range of Adjustment	120
Eye relief (in/mm)	4/101.6
Field of view, ft@100yd	32.5
Field of view, m@100m	10.83
Finish/Color	Matte black
Focal Plane	2nd
Fog Proof	Yes
Height (in/mm)	1.8/64
Illuminated (yes/no)	Yes
IP Standard	IP67 -waterproof and dustproof
Length (in/mm)	9.1/231
Lens Coating	Fully multi-coated
Magnification	4x
Material, Lens	Glass
Maximum Recoil	1,200G's
MOA Adjustment	1/2MOA
Nitrogen Filled	Yes
Operating Temp,F/C	0 to 120 / -17 to 49
Parallax Setting	100yds
Reticle	Etched glass
Reticle Brightness Setting	0-5
Reticle, Color	Red/Green
Reticle, Type	AR-223
Shockproof	Yes
Sunshade	No
Weight, oz	13.4
Width (in/mm)	2.4/62
Windage & Elevation, Lock	Yes
Windage Range of Adjustment	120

Core TX 4x32 AR .223 BDC Riflescope
