The Mini M-Spec is built from aluminum alloy with a steel protective shield making it one of the toughest compact optics out there. With 10 brightness settings, the Mini M-Spec reticle is visible in virtually any environment, from day time to extreme low light conditions.

Mini M-Spec users benefit from the addition of ambidextrous switch controls to fit the needs of both left- and right-handed users. Mini M-Specs boast a coated and scratch resistant lens, 12hour auto shut-off and is IP67 rated waterproof, dustproof and shockproof. The optic comes complete with a locking quick-detach mount and AR riser mount perfect for ARs, AKs, shotguns and pistols.

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

WARNING: This product can expose you to chemicals including Cumene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

FEATURES

100% waterproof and dustproof
Extremely low-power consumption
Windage and elevation click adjustments
3 MOA red dot reticle
10 reticle brightness levels
Ambidextrous digital switch brightness controls
Steel protective shield
12-hour auto shut off
Rugged, lightweight aluminum alloy housing
Scratch-resistant lens coating

Included in Package

Rubber cover
Low profile QD mount
AR riser QD mount
Battery
Manual

Batteries Used

CR1632

Reticle, Type	3 MOA
Reticle, Color	Red
Setting, Brightness	Off, 1-10
Magnification	1 x
Objective Lens	21 x 15 mm
Eye Relief	Unlimited
Elevation Range of Adjustment	110 MOA
Windage Range of Adjustment	110 MOA
Adjustment Value	1 MOA
Finish/Color	Dark Earth
Body Material	6061-T6 aluminum
Maximum Recoil	0.308
IP Rating (waterproof)	IP67 - waterproof to 1m/3ft for 1 hour
Nitrogen Filled	No
Shockproof	yes, 3ft / .9m
Fog Proof	No
Lens Coating	AR Red
Mount Type	Weaver / Picatinny
Battery Type	CR1632
Battery Life	300 - 30,000 Hours
Battery Voltage, V	3
Operating Temperature	-22 to 122 / -30 to 50 F / C
Length	2.2 / 56 with low mount in / mm
Width	1.85 / 47 with low mount in / mm
Height w/ low mount	1.34 / 34 in / mm
Weight w/ low mount	2.7 oz
Length w/ riser mount	2.2 / 56 in / mm
Width w/ riser mount	1.85 / 47 in / mm
Height w/ riser mount	2.2 / 56 in / mm
Weight w/ riser mount	3.4 oz
Parallax Setting	25yd - ∞

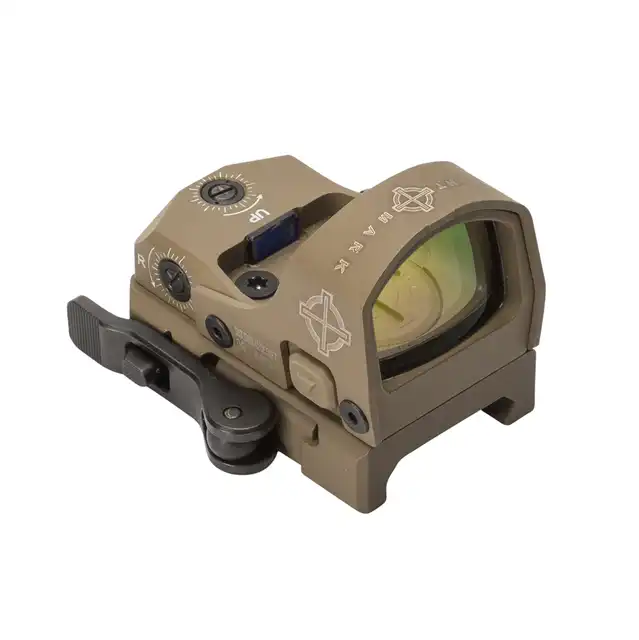

Mini Shot M-Spec LQD - Dark Earth
