At the push of a button, it measures distance, angle, temperature and air pressure. The 12x magnification enables outstanding detail recognition both near and far. Thus, you will be able to easily identify wildlife at various distances. The 42 mm objective lens diameter ensures that a lot of light enters the optics, making high-contrast observations possible even at dusk. Weighing just 930 g, the EL Range sits lightly and ergonomically in the hand thanks to its practical wrap-around grip. The EL Range can be individually configured. With a large field of view of 96 m at 1,000 m (288 ft/1,000 yards), you can keep an eye on everything despite the high magnification. The optionally available FRR-42 forehead rest for EL Range 42 helps you to hold the EL Range steady. This way, you can see clear, jitter-free images. With the EL Range, you are ready for any challenge and experience GROUNDBREAKING PRECISION.

Scope of delivery

FSB functional sidebag
UCS-R universal comfort strap with battery compartment
Eyepiece cover
Objective lens cover
BT tool
Microfiber cloth
Strap loop connector
Soap & Brush

Magnification	12x
Effective objective lens diameter	42 mm
Exit pupil diameter	3.5 mm
exit-pupil-distance-eye-relief-mm	19 mm
Field of view m at 1000m / ft at 1,000yds	96 m/1000m
Field of view degrees	5.5 °
Field of view with eye glasses (°)	5.5 °
Field of view apparent	61 °
Shortest focusing distance	5 m
Diopter adjustment	-7 to +5 dpt
Light transmission	90%
Pupil distance	56-74 mm
Twilight factor acc. to DIN-58388	20.5
Length in mm.	168 mm
Width in mm.	136 mm
Height in mm.	79 mm
Weight without batteries	930 g
functional-temperature-mechanically-electronically	-25 to +55 / -10 to +55 °C
Measuring range in yds./ m.	10 - 2000 m
Measuring accuracy in yds./ m.	1 m
Measuring time	≤ 0.5 s
Angular measurement	± 90 °
Laser	Class 1 EN/FDA
Units	Yard / Meter
Life cycle	2,000 measurements
Battery	CR2

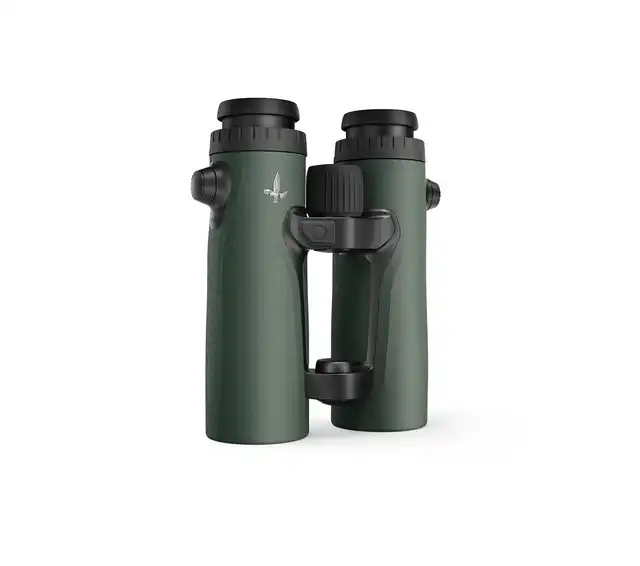

EL Range TA 12x42
