This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).

INCLUDES

Larue Tactical® LT799 Mount
Tenebraex® Flip Caps
Soft Carrying Case
Lithium AA Battery
LENSPEN® (TA56)
Trijicon Logo Sticker (PR15)
Manual
Warranty Card

Length x Width x Height	10.93 in x 2.91 in x 2.8 in (277.62mm x 73.91mm x 71.12mm)
Weight	32 oz. (907.18g)
Magnification	1-8x
Objective Size	28mm

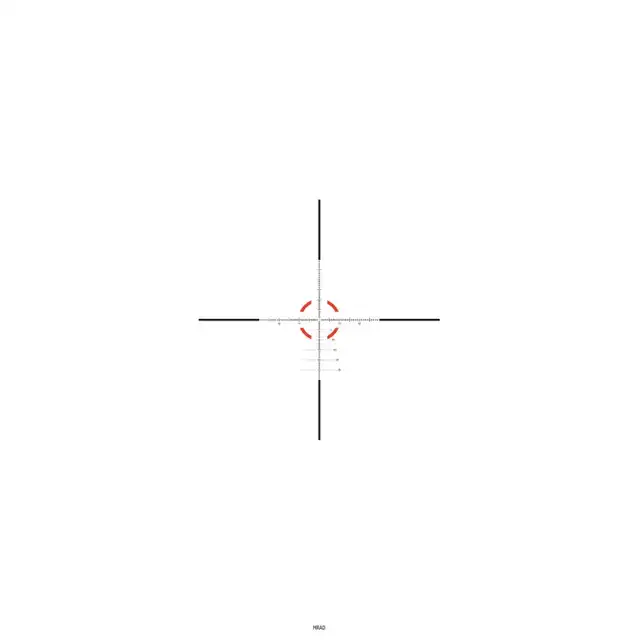

Reticle Pattern	Segmented Circle / Crosshair with Wind Holds
Day Reticle Color	Red
Night Reticle Color	Red
Focal Plane	First
Bindon Aiming Concept™ (BAC)	Yes
Illumination Source	LED
Illumination Settings	11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting
Power Source	AA Lithium or Alkaline Battery
Battery Life	633 hours (26.4 days) at setting 6
Adjustment	0.1 MRAD per click
Adjustment Range	35 MRAD
Eye Relief	4 in. (101.6mm)
Exit Pupil	0.41 in. - 0.14 in. (10.41mm - 3.56mm)
Field of View (degrees)	20° - 2.5°
Field of View (feet)	109.2 ft. - 13.1 ft. @ 100 yds. (36.4 - 4.37m @ 100m)
Mount	Larue Tactical® LT799 Mount
Housing Material	7075-T6 forged aluminum
Finish	Matte Black
Submersion Depth	66 ft. (20m)
Operating Temperature	-25F to 140F (-31.67c to 60c)

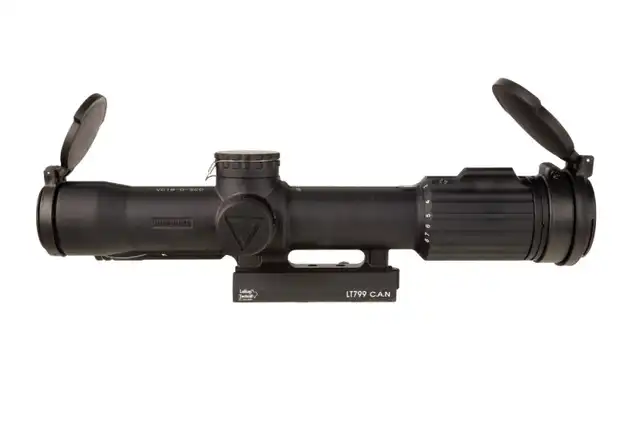

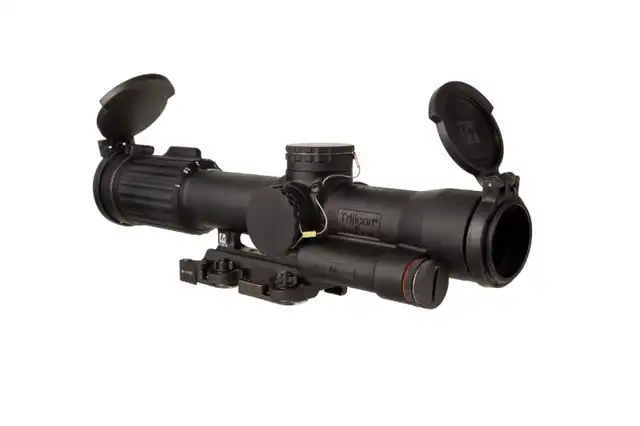

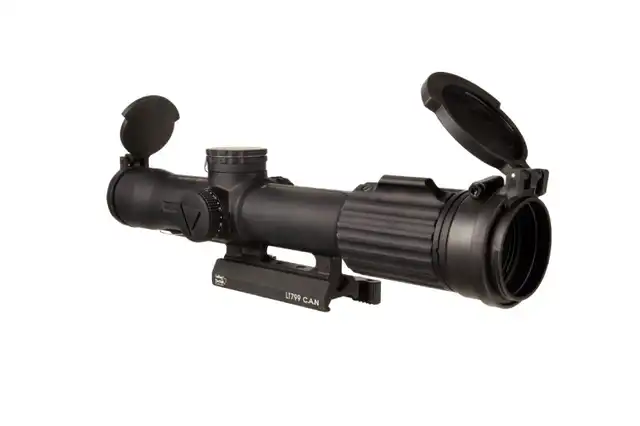

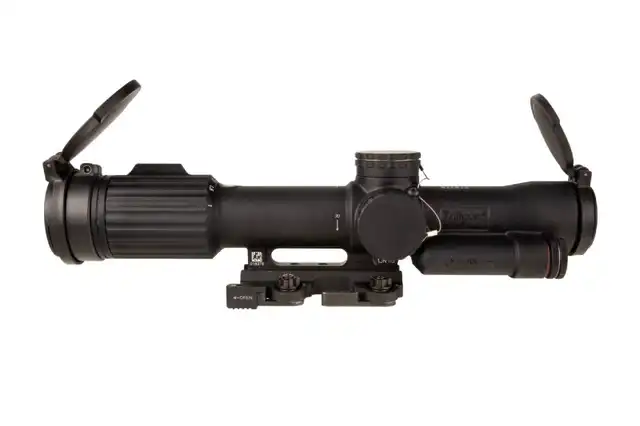

SCO VCOG® 1-8x28 Riflescope - Red MRAD Tree Reticle , Flip caps, w/ Larue Tactical® LT799 Mount
