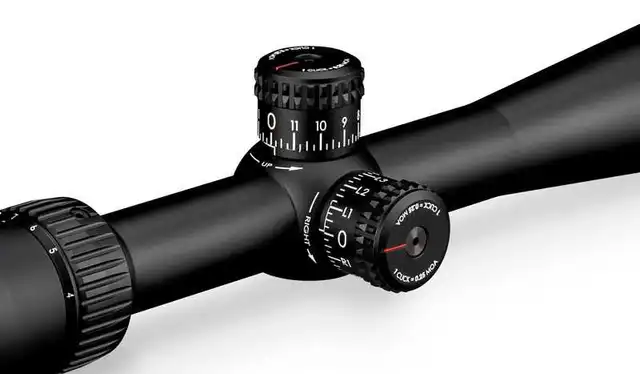

These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.

Product Manual

Reticle Manual

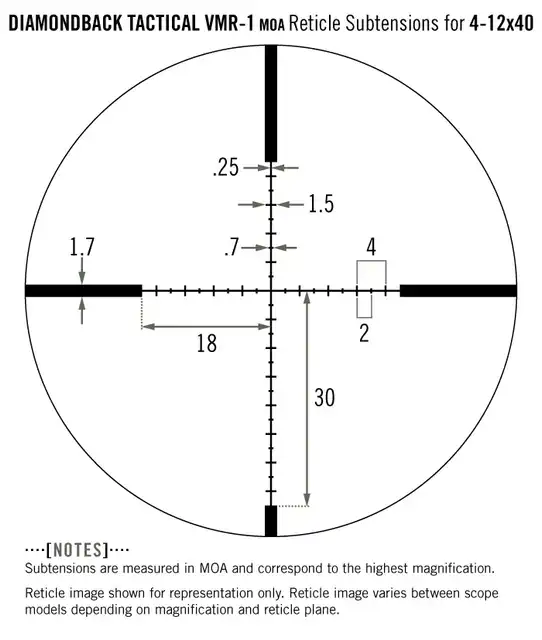

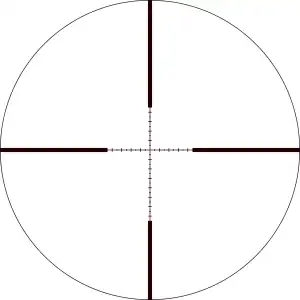

VMR-1 RETICLE

Designed to maximize long distance shooting and ranging abilities, the VMR-1 MOA reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads.

Included in the Box

Lens Covers
Lens Cloth
Tools

Features

Magnification: 4-12x
Objective Lens Diameter: 40 mm
Eye Relief: 3.9 inches
Field of View: 23.6-7.9 ft/100 yds
Tube Size: 1 inch
Turret Style: Tactical
Adjustment Graduation: 1/4 MOA
Travel Per Rotation: 12 MOA
Max Elevation Adjustment: 70 MOA
Max Windage Adjustment: 70 MOA
Parallax Setting: 100 yards
Length: 14.08 inches
Weight: 16.2 oz

OPTICAL FEATURES

XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

CONSTRUCTION FEATURES

Tube Size
1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
Exposed Tactical-Style Turrets
Provide fast, accurate and easily read elevation and windage adjustments.

CONVENIENCE FEATURES

Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Radius Bar
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.
Magnification Rib
The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.

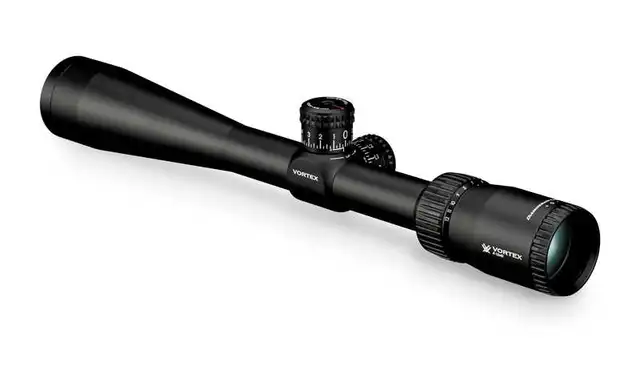

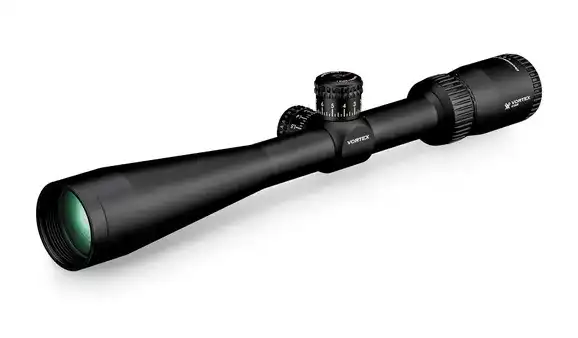

DIAMONDBACK® Tactical 4-12x40 VMR-1 (MOA)
