If you’re in the market for a high-quality riflescope, look no further than the Diamondback—a quality riflescope that offers a variety of configurations at a price that will leave you with plenty of money left over for ammo.

Included in the Box

Removable lens covers
Lens cloth

Features

Magnification: 1.75-5X
Objective Lens Diameter: 32 mm
Eye Relief: 3.5 inches
Field of View: 68.3-23.1 ft/100 yds
Tube Size: 1 inch
Turret Style: Capped
Adjustment Graduation: 1/4 MOA
Travel Per Rotation: 15 MOA
Max Elevation Adjustment: 125 MOA
Max Windage Adjustment: 125 MOA
Parallax Setting: 100 yards
Length: 10.2 inches
Weight: 12.8 oz

OPTICAL FEATURES

Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

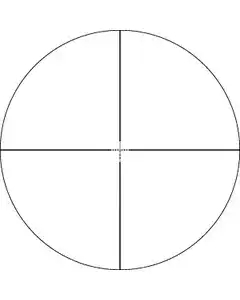

Second Focal Plane Reticle

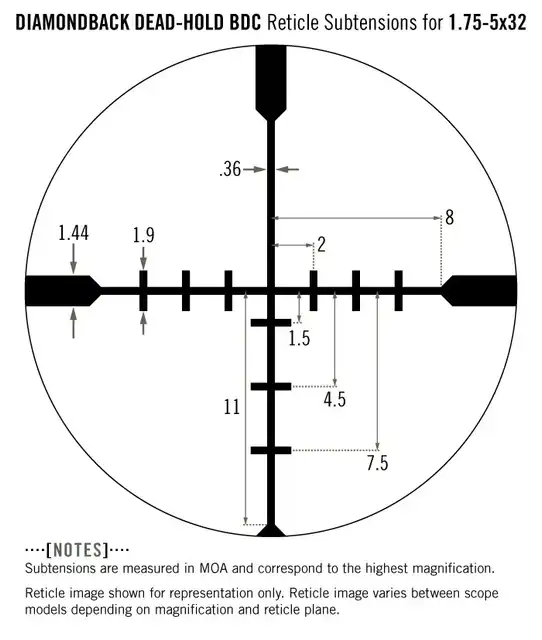

Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

Tube Size
1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Capped Reset Turrets
Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES

Precision-Glide Erector System
This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

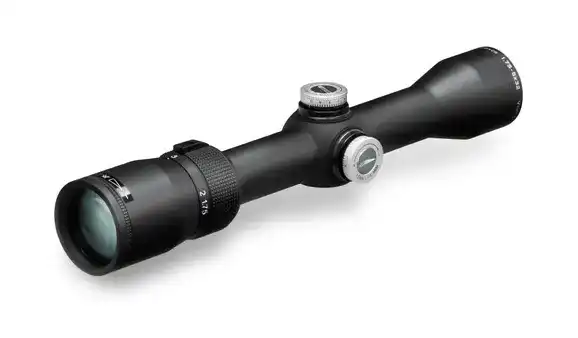

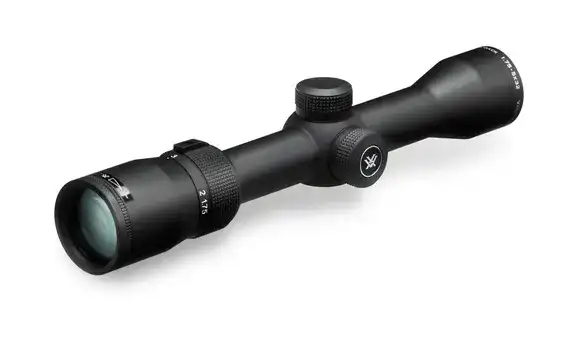

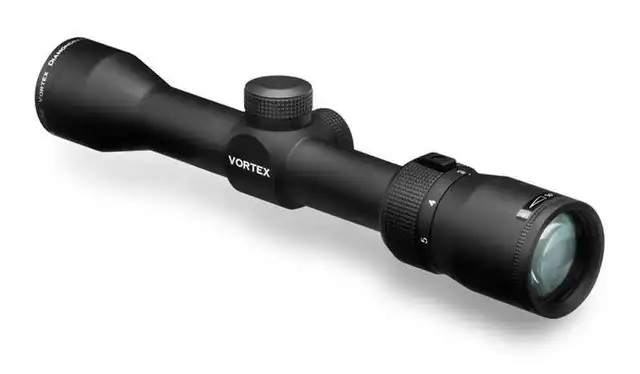

DIAMONDBACK® 1.75-5x32 Dead-Hold BDC (MOA)
