Stunning, High Definition optical system delivers a crystal-clear sight picture with tack-sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve sacrificed nothing with the Razor HD LHT.

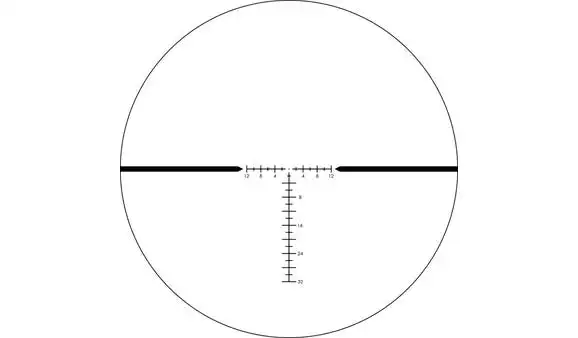

HSR-5i (MOA)

Ideal for those who want enough information to utilize personalized ballistics, but prefer a clean look. The HSR-5i reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. The fine center crosshair subtensions on the HSR-5i reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility.

Included in the Box:

Sunshade
Lens Covers
Lens Cloth
CR2032 battery
Free Custom Ballistic Strip Coupon

Specs:

Magnification: 3-15x
Objective Lens Diameter: 42 mm
Eye Relief: 3.8 inches
Field of View 35.3-7.0 ft/100 yds
Tube Size: 30 mm
Elevation Turret Style: Locking/Zero Stop
Windage Turret Style: Capped
Adjustment Graduation .25 MOA
Travel Per Rotation: 15 MOA
Max Elevation Adjustment: 80 MOA
Max Windage Adjustment: 80 MOA
Parallax Setting: 20 yards to infinity

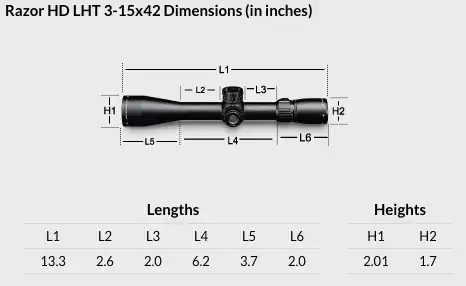

Length: 13.3 inches
Weight: 19.1 oz

OPTICAL FEATURES

HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot
Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.

CONSTRUCTION FEATURES

Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof
Rugged construction withstands recoil and impact.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Locking Elevation Turret
Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
Large Diameter Capped Windage Turret
Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.

CONVENIENCE FEATURES

RevStop™ Zero System
Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

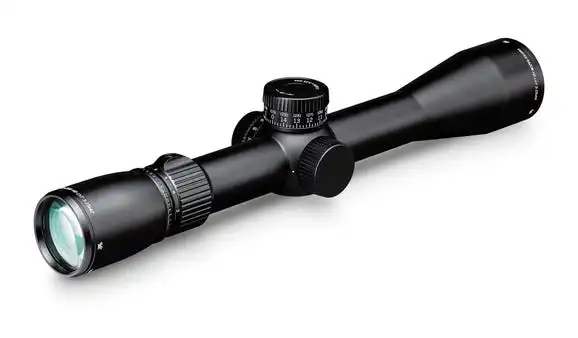

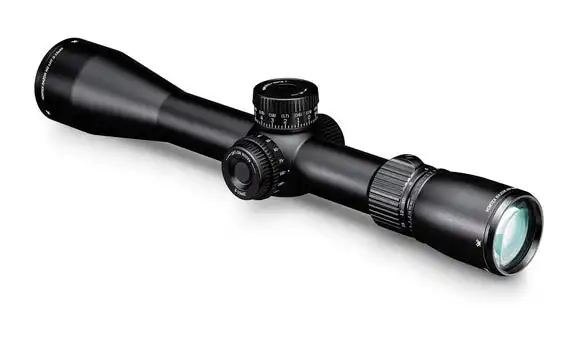

RAZOR® HD LHT™ 3-15x42 HSR-5i (MOA)
