EBR-8 RETICLE - Our exclusive EBR-8 MOA first focal plane, glass-etched, illuminated reticle facilitates rapid shooting from point blank out to 600 yards with popular .223/5.56mm and .308/7.62mm loads. This reticle also can be used with a wide variety of other calibers and loads using the BDC hashmarks.

OPTICAL FEATURES

Precise aiming under low-light conditions
Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION FEATURES

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Low-Glare Matte Black Anodized Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Included in the Box

Throw Lever
Flip Caps
Lens Cloth
Sunshade
CR2032 Battery
2mm Hex Wrench

Magnification	1-8x
Objective Lens Diameter	24 mm
Eye Relief	3.9 inches
Field of View	113.6-14.1 ft/100 yds
Tube Size	30 mm
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel Per Rotation	25 MOA
Max Elevation Adjustment	145 MOA
Max Windage Adjustment	145 MOA
Parallax Setting	125 yds
Length	10.4 inches
Weight	23.9 oz

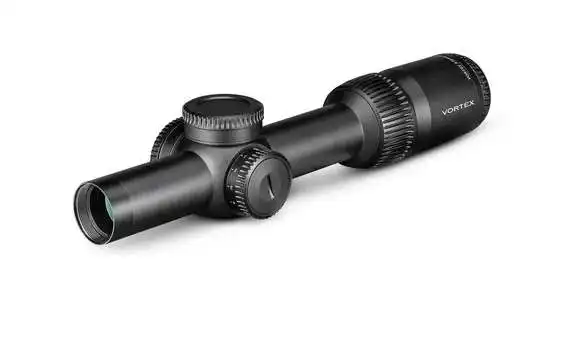

STRIKE EAGLE® 1-8x24 FFP
