CZ Direct fit upgrade Designed to fit the 19mm 550/557 integral dovetails, Warne's Maxima CZ rings are a solid steel, vertically split ring that handle even the most punishing recoil, or large, heavy scopes. Since each firearm manufacturer has their own proprietary mounting rail design, each ring model must be machined to exacting tolerances for proper fit and function. Because of this, the Warne CZ Rings are able to fit right onto the receiver's dovetail with no need for a mounting base. The CZ Quick Detach rings are available to fit the CZ 550 receiver design (19mm dovetail) and utilize 4 T-15 Torx style socket cap screws for secure and permanent optics mounting.

Attaches to firearm's dovetail.
Return to Zero Guaranteed, quickly detach and reattach the Maxima QD rings with no loss of zero.
CZ specific recoil key for positive engagement of ring to receiver dovetail.
Rings securely mount around scope using 4 Torx style T-15 socket cap screws.
Available in 1 and 30mm scopes.
Designed and MADE IN USA

SPECIFICATIONS

Part Number: 2BLM
Fits Objective Size: 52mm
Height: High
Dimension A: 1 inch
Dimension B: 0.535 inch
Dimension C: 0.705 inch
Finish Color: Matte Black
Weight: 6.7 oz
Material: Steel
Fits Objective Up To: 52mm
Scope Tube Diameter: 1 inch
Fits: CZ 550

INSTALLATION INSTRUCTIONS

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.

Remove the 4 screws from both rings.
Place the scope in the ring halves and re-insert recoil key (CZ & Ruger rings do not have specific recoil keys and utilize an integrated recoil management system)
Start all 4 screws on both rings and tighten only the bottom screws to 25in/lb* max.
Place rings onto the bases with the recoil keys in the slots and push each ring towards the muzzle to seat the recoil key
Tighten QD lever, thumb & forefinger tight***. (there is no need to over tighten QD lever)
Once both are correct, tighten the top screws on both rings to scope manufacturers’ recommended torque rating**, maximum of 25 in/lb. After tightening, pull QD levers out to index them to the desired position.
*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND
**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.
***Please refrain from tightening QD lever with any hand tool as it is not required.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.

If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.

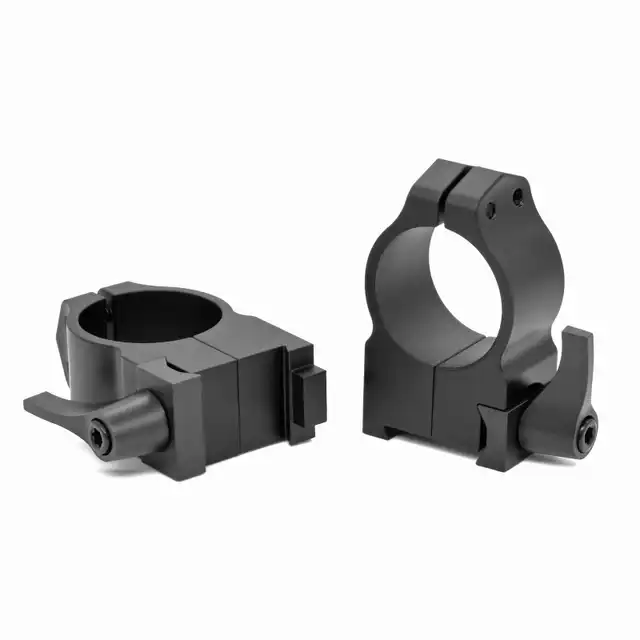

2BLM Warne 1 inch CZ 550, QD, High Matte Rings
