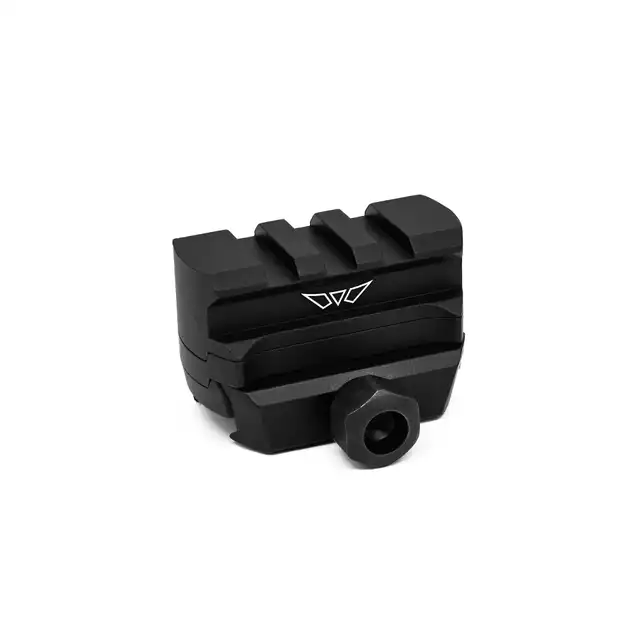

The Warne Picatinny Modular Red Dot Riser mount was designed to offer easy height adjustments with the included spacer to fit red dot optics that use a picatinny attachment and require a riser for use on an MSR. Since picatinny mounted red dots can vary in height, this mount allows the user to select 2 different heights based on their needs. All riser mounts that we offer share a robust mounting base, while the top is engineered speciﬁcally for different red dot styles.

Height w/o insert .805” top of rail to top of riser
Height w/insert .985” top of rail to top of riser
All risers include a .180” thick spacer
Designed and MADE IN USA
Lightweight Aluminum.

SPECIFICATIONS

Part Number: A6102M
Weight: 3.0 oz
Fits: Standard Pic Rail Accessories

INSTALLATION INSTRUCTIONS

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.

Assemble base, mount and sight with supplied T-10 screws.
Starting on the underside of the base insert supplied T-10* screws up through the bottom & loosely tighten all 4 screws and continue to tighten to a max of 10 in/lb
*Use longer screws with spacer plate, shorter screws w/o spacer
**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.

If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.

6102M, Red-dot riser, Picatinny rail
