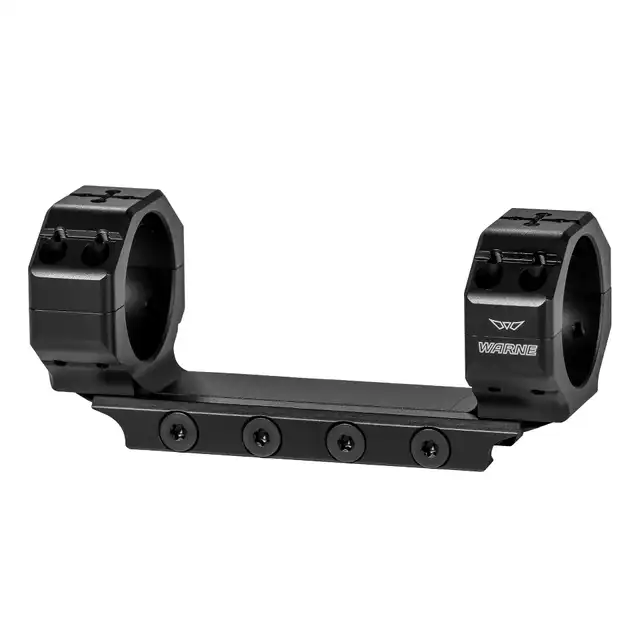

The Warne® Skyline® Precision Mount has been engineered from the ground up with the precision rifle shooter/competitor in mind. Machined from 7075 T6 aluminum billet, and featuring 2 integral recoil lugs along with 4 mounting crossbolts, the precision mount easily handles the rigors of competition or hard use environments. The STANAG rail interface allows for more precise mount alignment, and return to zero capability than a traditional Mil Spec 1913 Picatinny interface while still being compatible with all picatinny rails. The Warne Skyline Precision Mount features a wide assortment of accessories that mount directly to 10 different interfaces on the scope rings. Look for Warne's complete line of Skyline Precision Shooting Accessories at your favorite retailer. Accessory placement allows the scope tube to be free and easily moved front to back for precise eye relief and is a much more efficient way to mount accessories. Shooters can add these optional accessories:

Precision Mount Level
Data Card Holder
0° accessory rail
90° accessory rail
Data Card Refills
10 Accessory Mounting Locations.
Designed and MADE IN USA

Perfect for use in PRS, NRL, Precision Rifle Series

Warne is a Proud Sponsor of the PRS

SPECIFICATIONS

Part Number: 7841M
Fits Objective Size: 72mm
Height: Medium
Dimension A: 35mm
Dimension B: 1.18 inch
Dimension C: .813 inch
Dimension D: 3.23 inch
Finish Color: Matte Black
Weight: 7.1 oz
Material: 7075 Aluminum
Scope Tube Diameter: 35mm
Fits Objective Up To: 56mm

INSTALLATION INSTRUCTIONS

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.

Loosen 4 cross bolts with a T-20 wrench and install on your picatinny style rail.
Tighten cross bolts snug and follow the recommended pattern for ﬁnal tightening.
Warne recommends torquing the cross bolts in the order of 2, 3, 1, 4 to 40 in/lb max.
Remove the 4 cap screws from each top cap with the supplied T-15 wrench and remove the top caps.
Place your scope in the mount and replace the top caps and screws*.
Slowly tighten cap screws evenly and leave loose enough to adjust for eye relief and level the reticle and tighten the cap screws in a criss-cross pattern to scope manufacturers’ recommended torque rating**, 18 in/lb maximum.
*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND
**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.

If you are unsure or do not have the proper tools, please contact a gunsmith for assistance, Warne will not be held liable for stripped/damaged receivers or scopes.

7841M 1 PC Precision Mount 35mm Medium Height
