WHAT'S IN THE BOX

(1) Woodworking Tool Sharpener (WS3000)
(2) Glass Wheels
(1) Slotted Edge-Vision Wheel
(2) P120 Solid Abrasive Disc
(4) P400 Solid Abrasive Disc
(4) P1000 Solid Abrasive Disc
(1) 3600 Solid Abrasive Disc
(1) P80 Slotted Abrasive Disc
(2) P400 Slotted Abrasive Disc
(2) P1200 Slotted Abrasive Disc
(2) Sharpening Port Lapping Abrasive
(1) Tool Rest
(1) Abrasive Cleaner
(1) Instructional DVD
(1) User Guide

Cutting Edge Technology for Woodworkers

The WS-3000 is an air-cooled woodworking tool sharpening system that consistently and accurately grinds, sharpens and hones to a perfect 20°, 25°, 30° or 35° bevel angle without cumbersome jigs. It also allows you to sharpen a perfect 5° micro-bevel for even faster re-honing, or create custom edge profiles using the horizontal, low-speed abrasive wheel.

The WS-3000 sharpens:

chisels, plane irons, and Spokeshave blades up to 2" wide
carving tools
lathe tools
scrapers
and many other common edge tools

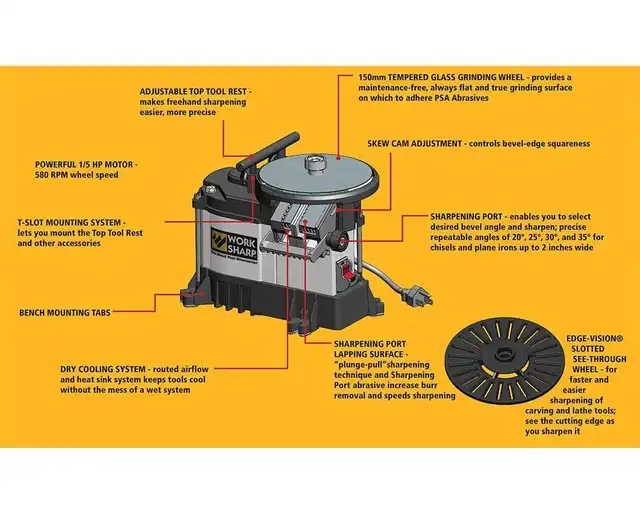

The Work Sharp 3000 Woodworking Tool Sharpener uses a high torque 1/5 hp motor and produces a maximum wheel speed of 580 RPM, making the large abrasive area safer, cooler and easier to control than vertical grinding wheels. The WS-3000 utilizes gear reduced wheel speed (while preserving consistent torque output) to sharpen tools without overheating or damaging the temper of the steel. And when sharpening chisels and plane irons, the tool rests on a forced-air heat sink that literally takes the heat away from the tool as it sharpens. This patent-pending heat sink is coated with a replaceable ceramic oxide lapping abrasive that automatically deburrs your edges as you sharpen.

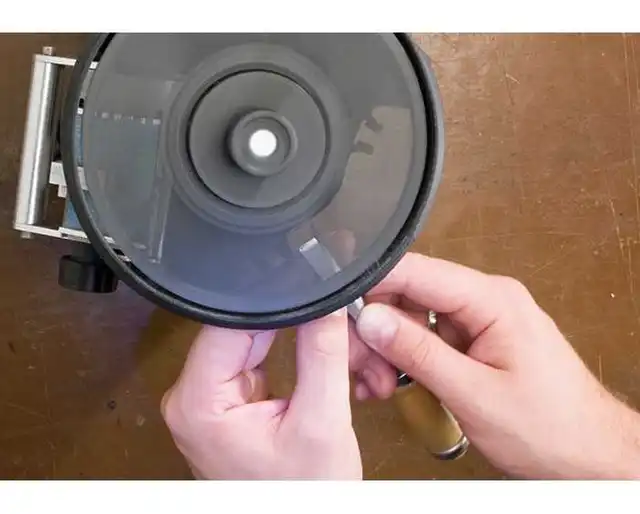

The WS-3000 includes 2 tempered glass wheels (150mm) - giving you 4 abrasive surfaces (2 per wheel) to quickly and easily meet the sharpening task at hand. The WS3000 also comes with the innovative Edge-Vision wheel. Slots in the Edge-Vision wheel allow you to see the cutting edge of the tool you are sharpening, making it easier than ever to sharpen carving tools and lathe tools by eliminating guess work and over-grinding.

Optional accessories are available separately that expand the utility of the WS-3000 to sharpen wide tools, knives edges and more.

WARRANTY

2-year warranty; excludes abrasives. Warranty for consumer not industrial use.

*NOTE: Using a 115V machine in a location with 230V power sources voids your warranty.
